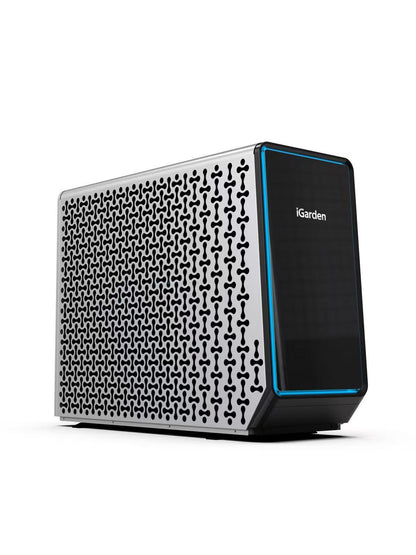

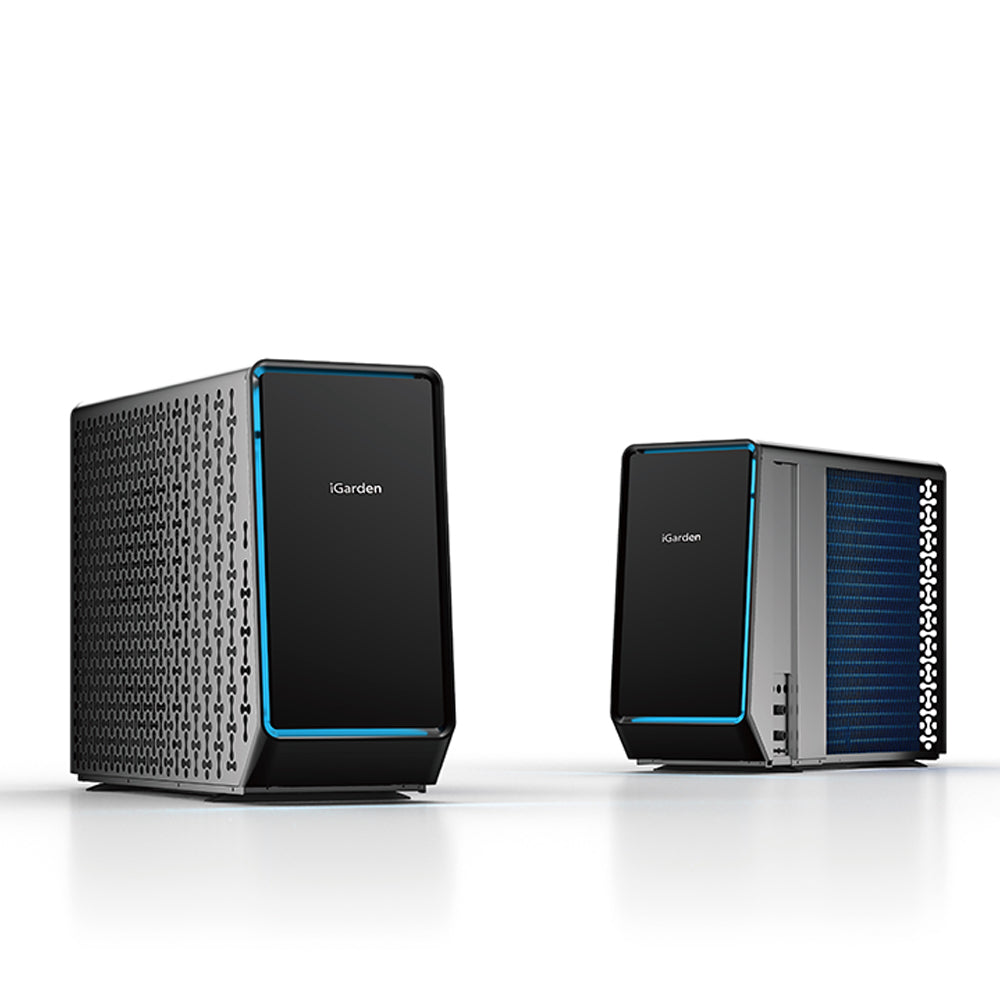

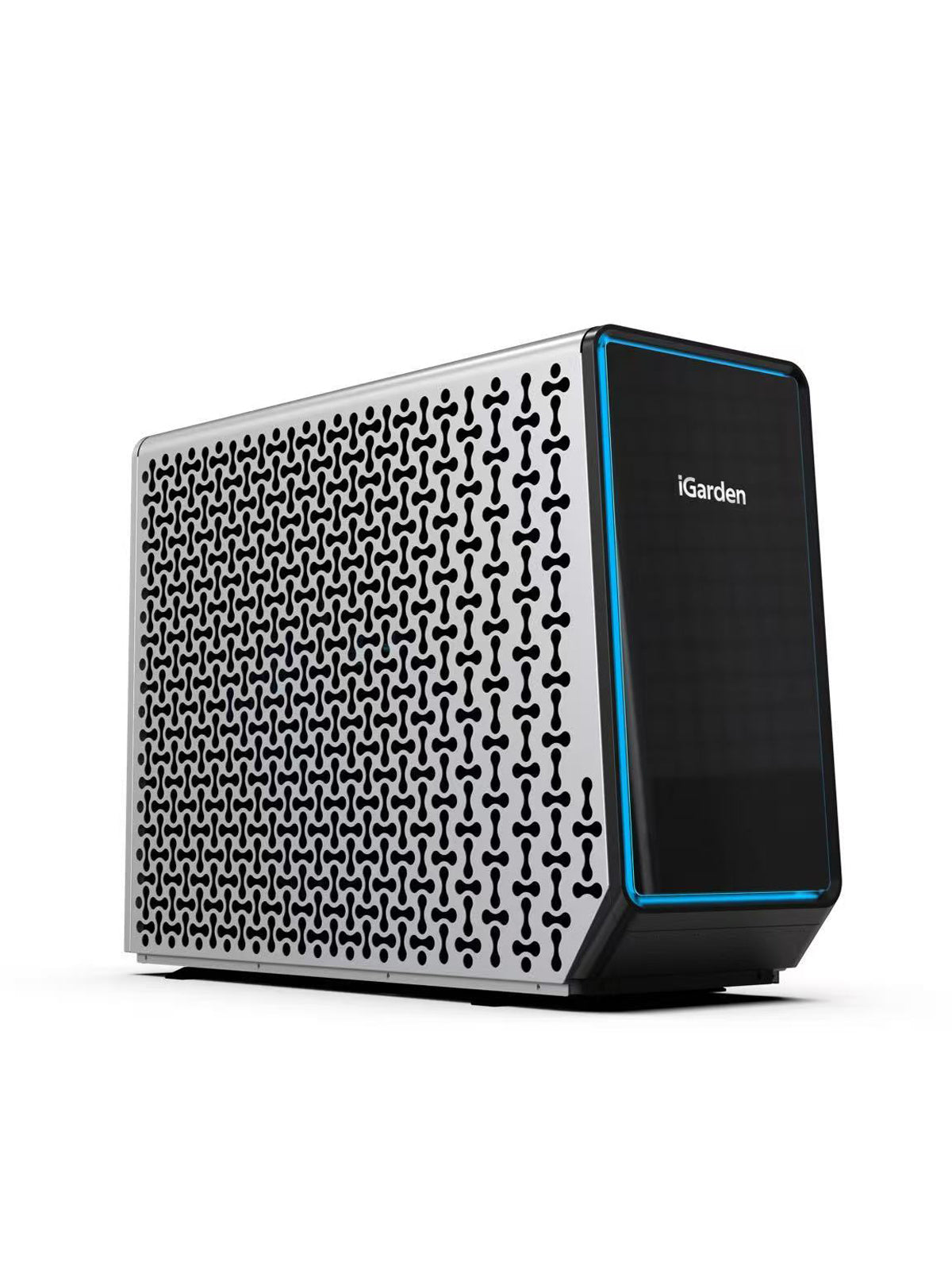

| Air to water heat pump | Model | iGXC08 | iGXC11 | iGXC13 | iGXC16 | iGXC11T | iGXC13T | iGXC16T | |
|---|---|---|---|---|---|---|---|---|---|
| Power supply | 220–240V~/50Hz | 380–415V/3N~/50Hz | |||||||
| A7°C/W35°C | Normal capacity | kW | 8.00 | 11.00 | 13.00 | 16.00 | 11.00 | 13.00 | 16.00 |
| Heating capacity range | kW | 2.11–10.04 | 3.75–13.45 | 4.05–15.10 | 6.41–20.64 | 3.77–13.46 | 4.05–15.15 | 6.41–20.64 | |
| Power consumption range | kW | 0.33–3.01 | 0.57–3.77 | 0.66–4.01 | 1.06–6.03 | 0.55–3.74 | 0.66–4.00 | 1.06–6.03 | |
| COP range | W/W | 4.13–7.00 | 4.11–7.00 | 4.09–6.57 | 4.05–6.45 | 4.13–6.95 | 4.09–6.58 | 4.05–6.45 | |
| A2°C/W35°C | Normal capacity | kW | 7.50 | 10.50 | 12.50 | 15.60 | 10.50 | 12.50 | 15.60 |
| Heating capacity range | kW | 2.05–10.01 | 3.45–13.30 | 3.55–14.50 | 5.55–18.33 | 3.44–13.21 | 3.55–14.55 | 5.55–18.33 | |
| Power consumption range | kW | 0.41–3.07 | 0.69–3.74 | 0.87–3.96 | 1.15–5.96 | 0.67–3.79 | 0.87–3.93 | 1.15–5.96 | |
| COP range | W/W | 2.33–4.75 | 2.26–4.67 | 2.50–4.56 | 2.45–4.51 | 2.25–4.66 | 2.50–4.59 | 2.45–4.51 | |
| A7°C/W55°C | Normal capacity | kW | 7.60 | 10.60 | 12.70 | 15.80 | 10.50 | 12.70 | 15.80 |
| Heating capacity range | kW | 2.27–10.22 | 3.32–13.06 | 3.92–14.56 | 5.32–20.12 | 3.33–13.08 | 3.92–14.60 | 5.32–20.12 | |
| Power consumption range | kW | 0.43–3.25 | 0.75–4.05 | 0.96–4.65 | 1.13–6.75 | 0.76–4.08 | 0.96–4.64 | 1.13–6.75 | |
| COP range | W/W | 2.25–4.15 | 2.15–4.03 | 2.04–4.01 | 2.06–4.00 | 2.15–4.02 | 2.04–4.04 | 2.06–4.00 | |
| A35°C/W18°C | Normal capacity | kW | 7.00 | 10.00 | 12.00 | 15.00 | 10.00 | 12.00 | 15.00 |
| Cooling capacity range | kW | 1.89–9.15 | 2.74–12.55 | 3.63–13.76 | 4.93–17.65 | 2.73–12.50 | 3.63–13.79 | 4.93–17.65 | |
| Power consumption range | kW | 0.47–2.89 | 0.84–3.56 | 0.77–3.88 | 1.10–5.75 | 0.81–3.57 | 0.77–3.85 | 1.10–5.75 | |
| EER range | W/W | 2.21–4.33 | 2.10–4.21 | 2.01–4.16 | 2.05–4.20 | 2.08–4.20 | 2.01–4.20 | 2.05–4.20 | |
| Energy rating | Average climate, W35°C | / | A+++ | ||||||
| Average climate, W55°C | / | A+++ | |||||||
| Electrical data | Rated current | A | 10.6 | 17.7 | 19.0 | 24.3 | 8.4 | 9.1 | 11.1 |
| Max current | A | 16.0 | 24.8 | 26.5 | 38 | 14.6 | 15.2 | 18.3 | |
| Maximum power consumption | kW | 4.2 | 5.8 | 6.2 | 9 | 5.9 | 6.5 | 9.5 | |
| Noise | Sound pressure level (1 m) | dB(A) | 43 | 44 | 45 | 47 | 44 | 45 | 47 |
| Sound pressure level (3 m) | dB(A) | 29 | 30 | 32 | 35 | 30 | 32 | 35 | |
| Sound power level | dB(A) | 56 | 57 | 58 | 61 | 57 | 58 | 61 | |
| Temperature & Flow | Maximum temperature | °C | 75 | ||||||
| Environment requirement | °C | -25–43 | |||||||
| Hot water flow rate | m³/h | 1.50 | 1.80 | 2.20 | 3.00 | 1.80 | 2.20 | 3.00 | |
| Water pipe in-out spec | Inch | G1" | G1" | G1" | G1 1/4" | G1" | G1" | G1 1/4" | |
| Refrigerant circuit | Refrigerant | / | R290 | ||||||
| GWP | / | 3 | |||||||
| Compressor | / | Twin rotary | |||||||
